XMB (GUI)

XMB was the default user interface for RetroArch, until it was succeeded by Ozone in RetroArch 1.7.6. It is based on Sony's "cross-media bar" GUI, most widely known from the PSP and PlayStation 3.

XMB startup screen

The top-level menus and playlists are displayed in a single "primary" row, running from left to right. For the selected row item, a submenu column will appear below it.

XMB is designed for use with a gamepad or keyboard.

Press left or right to move along the primary row, and press up or down to scroll the column. The selected item in this column is always the first line under the primary row.

The user can press backspace to go back a step.

Input

Content is controlled using a keyboard or gamepad, connected via USB or Bluetooth.

See Input and Controls

Thumbnails

By default, no thumbnails are displayed. Up to 2 can be enabled: The primary thumbnail will appear on the lower right side of the screen when a Playlist entry is selected. The secondary thumbnail will appear on the left. Press the spacebar key to view the thumbnails full-screen (press spacebar again to toggle the view off).

Thumbnails can be enabled in Settings> User Interface> Appearance, toggling the Primary Thumbnail and/or Secondary Thumbnail option. Thumbnails can be boxart, a title screen screenshot, or a gameplay screenshot.

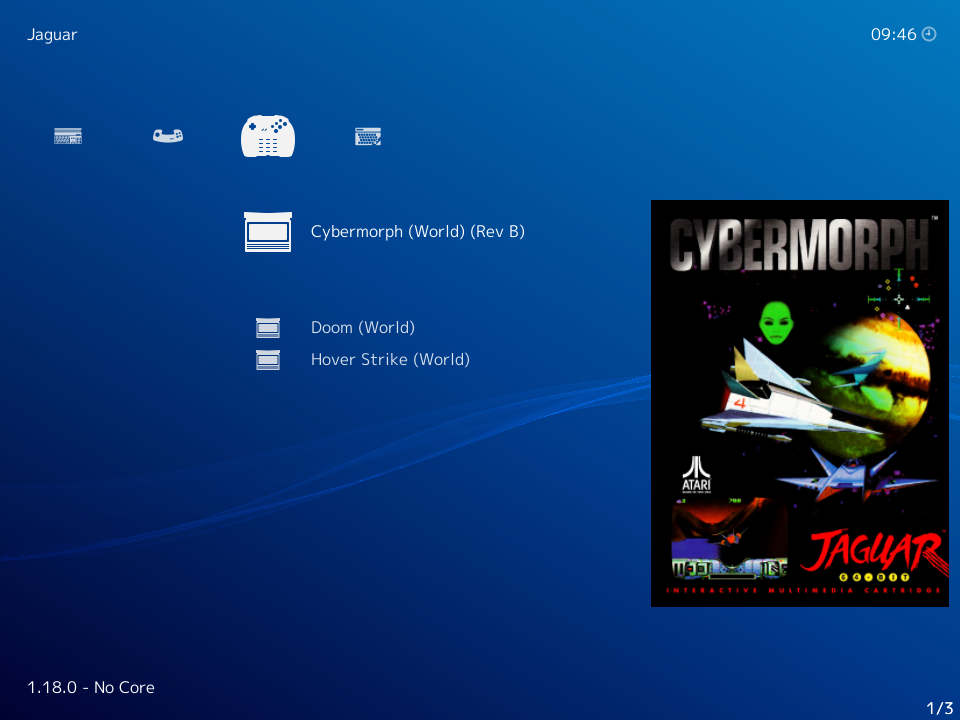

XMB with 'Boxart' thumbnails enabled

Themes

XMB has a number of styles built-in. They can be changed in the Settings > User Interface > Appearance menu.

  • The background color can be changed: Scroll through Color Theme to select a color.

  • The animated background "wallpaper" can also be changed (Shader Pipeline), the default being a PlayStation-style animated ribbon.

  • XMB also has a selection of icon sets to choose from (Icon Theme).

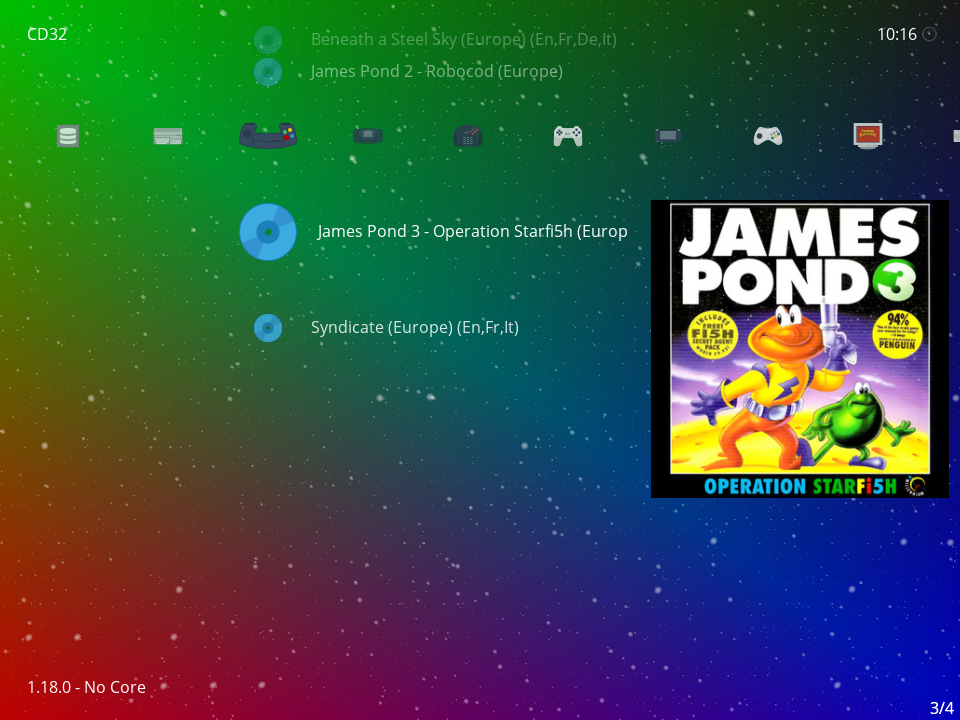

XMB with an alternative background color, background animation, and icon set XMB with an alternative background color, background animation, and icon set.
