RGUI RetroArch Menu Interface¶
RGUI is a simple built-in GUI for RetroArch. It was originally introduced in the Wii port of RetroArch in order to provide the console experience, where everything is controlled from a joypad. RGUI was later refitted for PC and mobile ports.
While RGUI cannot configure absolutely everything, it can do the most common things you would want to do while using RetroArch.
- Selecting libretro core
- Load a game
- Tweak per-libretro core options (e.g. colorization in GameBoy)
- Load game from history (previous games played)
- Save/load savestates
- Configure shaders
- Configure aspect ratios
- Configure integer scale
- Toggle fullscreen
- Swap disk images (needed for PlayStation, see notes below!)
- Take screenshots
- Enable/disable real-time rewind
- Simple input configuration
- Mute/unmute audio
- Exit RetroArch
By default, RetroArch looks for a config in various places depending on OS:
~/.retroarch.cfg, and finally, as a fallback,
retroarch.cfgin same folder as
To override this, use
retroarch --config customconfig.cfg. If you have some special options you want to store in separate config files you can use
retroarch --config baseconfig.cfg --appendconfig specialconfig.cfg. See man-page and/or
--help for detail.
While you are changing settings in runtime, they are not saved to disk afterwards on PC by default. If you want RetroArch to automatically write back the config, either set
config_save_on_exit = true in config, or enable this under Settings -> Config Save On Exit from within RGUI.
By design, the config file is considered immutable as it is likely maintained by the user, and should not be overwritten behind the users back. This is not the case on consoles however, where looking at the config manually isn't really an option for most users.
Entering the menu¶
- By default on PC, the F1 button will enter the menu.
- To exit the menu, use F1 or
- To start immediately in RGUI without any game or core loaded, use the
--menucommand line option. As a special case, if no arguments are received, it is treated the same as running
Menu toggle button can be mapped to joypad as well, see option
input_menu_toggle option in
Navigating the menu¶
RGUI is controlled like any other libretro core. Regular input binds will apply, and binds here are defined in terms of the RetroPad, RetroArch's joypad abstraction.
- A button (Default PC: X): Accept/OK
- B button (Default PC: Z): Back/Cancel
- Start (Default PC: Return): Go to main settings menu
- Select (Default PC: Right shift): Set a setting to default
- Up/Down D-pad (Default PC: Up/Down keys): Browse settings/files
- Left/Right D-pad (Default PC: Left/Right keys): Toggle settings, or browse several items at once in file browser.
Searching through lists with keyboard¶
When using a keyboard, it can be slow to navigate a large list using gamepad-like controls. To help this, you can type
/ (forward slash) at any time to bring up a search-box. Type a search string and hit return. The cursor should jump to the first entry that matches. The search will match mid-path strings. However, if a match is found at the beginning of the path, like when searching for first letter, the start-of-path match will take priority.
The forward slash is recognized on character basis, not on the key itself. This allows e.g. norwegian layouts to type forward slash using shift + 7. Characters which are outside the ASCII set are recognized but ignored as RGUI cannot render such characters anyways.
RGUI thumbnail support requires the use of playlist files and thumbnail image packs, as described in ROMs, Playlists, and Thumbnails.
To view existing playlists choose
Load Content from the top menu, then
Collections. Select a playlist, and while browsing its contents use the RetroPad Y button to toggle the display of the thumbnail associated with the currently highlighted entry:
Note that it is possible to navigate up and down through a playlist while thumbnails are being shown.
To choose which type of thumbnail will be displayed, from the top menu select
Settings > User Interface > Appearance and set the
Thumbnails option to one of:
Any thumbnail image larger than 320x240 will be downscaled automatically to fit the screen. Three downscaling methods are provided, allowing a choice between performance and quality. To switch between them, from the top menu select
Settings > User Interface > Appearance and set the
Thumbnail Downscaling Method option to one of:
Nearest Neighbour (Fast): Simple (pixelated) nearest neighbour scaling. Has a very low impact on performance, and should be usable on any hardware.
Bilinear: Smooth (although potentially blurry) resampling. Slower than nearest neighbour, but should be usable on most hardware.
Sinc/Lanczos3 (Slow): High quality resampling (although sometimes generates artefacts when source image contains dithering). May cause lag on very low end devices, but has no discernable performance impact on desktop-class hardware.
Starting a game¶
- To load a game you need a libretro core to use, and a ROM.
Corefrom top menu, you can browse for a libretro implementation.
- Where the browser starts depends on your
- If blank, it will start in root (tedious to browse). If
libretro_pathis a directory, RGUI will use that as top folder. If
libretro_pathis a full path, it will start in the folder where the file is.
After loading a libretro core, you will see the name and version of the core in lower part of screen. You can then browse for a ROM with
Load Game. To control where RGUI starts to browse for roms, set
rgui_browser_directory in config. If not set, it'll start in root.
The browser will filter out extensions for the last core set in
Core, and use that core when a ROM is loaded. If
libretro_path in config is set with a full path to a core, this core is automatically selected once RGUI boots up (but you can still change the core afterwards).
The fundamental options are:
- Apply Shader Changes: After changing shader settings, use this to apply changes. Changing shader settings is a somewhat expensive operation so it has to be done explicitly.
- Default Filter: Choose hardware filter to use if a shader pass is not explicitly defined.
- Load Shader Preset: Load a Cg/GLSL preset directly. The RGUI shader menu is updated accordingly. If the CGP uses scaling methods which are not simple, (i.e. source scaling, same scaling factor for X/Y), the scaling factors displayed in RGUI might not be correct.
- Shader Passes: Number of shader passes to use. If you set this to 0, and use Apply Shader Changes, you use a "blank" shader. The Default Filter option will affect the stretching filter.
For every shader pass you can configure:
- Shader #N: Path to shader. All shaders must be of the same type (i.e. .cg or .glsl). Set
video_shader_dir in config to set where browser starts to look for shaders.
- Shader #N Filter: Hardware filter. If "don't care" is set, Default Filter will be used.
- Shader #N Scale: Scale for this pass. The scale factor accumulates, i.e. 2x for first pass and 2x for second pass will give you a 4x total scale. If there is a scale factor for last pass, the result is stretched to screen with filter specificed in Default Filter. If "don't care" is set, either 1x scale or stretch to fullscreen will be used depending if it's not the last pass or not.
When you apply shaders, the RGUI shader settings are saved to a temporary file (either rgui.cgp or rgui.glslp) and loaded. The file persists after RetroArch exits. The file is saved to
video_shader_dir directory in config. If you always want to load the RGUI preset on bootup, you can set
video_shader option to this file.
Converting Cg shaders to GLSL¶
In some cases, Cg shaders cannot be supported. This goes for OpenGL ES drivers, and when EGL OpenGL contexts are used (KMS mode for instance). Using nVidia's
cgc compiler, you can convert Cg shaders to GLSL shaders with the
cg2glsl tool developed by us here. It can convert single shaders as well as whole folder structures in batch.
100% compatibility is not guaranteed, but almost all shaders should work fine. Cg presets (.cgp) are not converted at the moment, but converting them is as simple as copying over the .cgp, rename it to .glslp and replace references to .cg files to .glsl.
Currently you can configure two settings per player (on PC):
- Device: Picks which gamepad to use for player N. The name of the pad is available.
- Device Type: Picks which device type to use. This is relevant for the libretro core itself, and mostly useful for PlayStation, which needs to know if you're using a DualAnalog device or not.
Configuring joypad input¶
Configuring joypad input is supported from within RGUI.
Normal gameplay binds as well as RGUI hotkey binding is supported. It is possible to bind everything in succession for convenience.
Configuring keyboard input¶
Configuring keyboard input is currently not supported. To configure keyboard binds, it must be done outside RGUI.
PlayStation disk swapping¶
Some PlayStation games require disk swapping. To manage disks, libretro has a concept of a disk index (like a multi-disk CD player, remember those? :P). If a PlayStation core is loaded,
Disk Index and
Disk Image Append options are added to main menu.
In Mednafen PSX, multi-CD images are typically handled with an .m3u playlist. In this case, you can swap disks by cycling through the Disk Index setting. If you don't or can't use a playlist, you can append a disk image on the fly using
Disk Image Append. In this case, you browse for a disk image and append it to the internal disk image list. The
Disk Index is updated appropriately and you are returned to the game.
Replacing the disk inside RGUI is "physically" speaking the same as ejecting, swapping disks and closing the tray instantanously. Some games will not work with this approach, notably Metal Gear Solid because they need to detect an actual eject taking place.
To work around this, set
Disk Index to
No Disk, and exit RGUI. The game will pick up that the tray has been ejected/missing disk after half a second or so. Now you can go back to RGUI, pick the correct disk index and return to the game.
The visual appearance of RGUI may altered by choosing one of 32 inbuilt color themes. From the top menu select
Settings > User Interface > Appearance and cycle through the various
Menu Color Theme options:
Menu Color Theme to
Custom allows for an even greater degree of personalisation via the use of custom menu theme presets. A number of examples are provided in the RetroArch assets package, which may be downloaded by selecting from the top menu

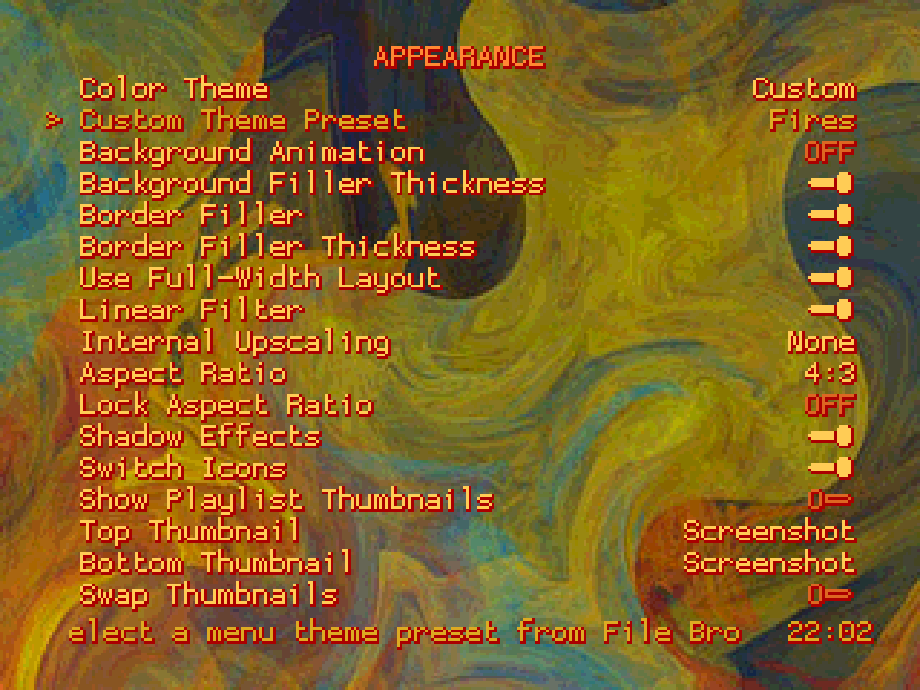

Online Updater > Update Assets. To choose one of these examples, go to
Settings > User Interface > Appearance and select the
Custom Menu Theme Preset option. In the file browser that opens, navigate to the
rgui directory and select a
Creating Custom Menu Theme Presets¶
A custom menu theme preset is a plain text configuration file (e.g.
my_theme.cfg) with the following contents:
1 2 3 4 5 6 7 8
rgui_entry_normal_color = "0xAARRGGBB" rgui_entry_hover_color = "0xAARRGGBB" rgui_title_color = "0xAARRGGBB" rgui_bg_dark_color = "0xAARRGGBB" rgui_bg_light_color = "0xAARRGGBB" rgui_border_dark_color = "0xAARRGGBB" rgui_border_light_color = "0xAARRGGBB" rgui_wallpaper = "wallpaper_file.png"
rgui_entry_normal_color: Specifies the color of all 'normal' text displayed in any list.
rgui_entry_hover_color: Specifies the color of the currently selected entry, along with the core name and clock displayed at the bottom of the screen.
rgui_bg_dark/light_color: Specifies the menu background color. Setting
rgui_bg_light_colorto different values creates a chequerboard effect. Also used for the background of message boxes, and the title text when displaying thumbnails.
rgui_border_dark/light_color: Specifies the color of the border 'frame' drawn around the perimeter of the menu. Setting
rgui_border_light_colorto different values creates a chequerboard effect. Also used for the frame of message boxes.
rgui_wallpaper: The relative file path to an optional wallpaper image. If this entry is omitted or left empty, no wallpaper is used.
All color values are given in 0xAARRGGBB 8-digit hex code format - i.e. the first two digits correspond to the alpha (transparency) value, while the remaining 6 are a normal hex triplet. For example: fully opaque red would correspond to
0xFFFF0000; 50% transparent green would correspond (approximately) to
For maximum legibility, the alpha value for all text colors should be set to
FF (fully opaque). For the background and border, setting partial transparency allows the currently loaded content to be seen 'through' the menu when opening it while running a game. Note, however, that setting partial transparency causes colors to appear darker than expected, so careful tuning of the hex triplet values is required. Appropriate transparency values are as follows:
When creating a dark theme without wallpaper, the border/bg alpha component should be set to
When creating a light theme without wallpaper, the border/bg alpha component should be set to
When creating a theme with wallpaper, the border/bg alpha component should be set to
FF. (This is because it is very difficult to create a semi-transparent wallpaper image with proper colors, and so it is most practical to make everything fully opaque when using wallpapers)
Creating Wallpaper Images¶
RGUI wallpapers must have the following properties:
A resolution of exactly 320x240.
A color depth of 4 bits per pixel. (This is not strictly required, but using an image with greater color depth will not produce expected results)
Wallpapers should be generated in PNG format.
To produce a suitable image, the user should first create a regular 320x240 PNG file via any means at their disposal. Inkscape users may find the following simple template beneficial: rgui_wallpaper_template.svg
Once the image is complete, it is necessary to reduce its color depth. This may be done via one of two methods:
1) pngquant (recommended):
Download/compile/install the latest version, then use the following command to process a wallpaper source file:
> pngquant --posterize=4 --force -o "WALLPAPER_NAME_indexed.png" "WALLPAPER_SOURCE.png"
Open the output
WALLPAPER_NAME_indexed.png file and check that colors/gradients appear correct. In most cases, the result will be agreeable. If odd 'speckles' are apparent, it may be necessary to adjust the colors in the source image (this is a black art, and beyond the scope of this document). If the image has unacceptable, uncorrectable dithering then the
WALLPAPER_NAME_indexed.png file should be discarded, and the following alternate method used instead:
GIMP is a well known image editor. In general it produces lower quality color reduction than pngquant, but it can handle certain gradients and patterns that cause pngquant to stumble. Download/install the latest version, then:
Open the wallpaper source file
From the menu, select
Image > Mode > Indexed...
Indexed Color Conversionpop-up, select:
Generate optimum palette
Maximum number of colors:
Floyd-Steinberg (reduced color bleeding(use whichever looks best, but the other options here will not work)
Inspect the result. Some manual touch-up may be required. (If the image is disagreeable at this stage, then the wallpaper probably isn't going to work - so start over...)
If all is well, select from the menu
File > Export As...and name the file
Export Image as PNGpop-up, untick
Save color values from transparent pixelsand click
Whether pngquant or GIMP is used to create
WALLPAPER_NAME_indexed.png, a final stage of optimisation should be applied to generate a 'clean' output wallpaper. This can be done using OptiPNG. Download/compile/install the latest version, then run the following command:
> optipng -o7 -strip=all -force -clobber -out `WALLPAPER_NAME.png` `WALLPAPER_NAME_indexed.png`
Edit the custom menu theme preset configuration file such that
rgui_wallpaper points to the resultant
WALLPAPER_NAME.png image. Once appropriate text/background/border colors have been set, the theme is complete.
